Quick Guide: How to Select the Right CNC Machining Center?
Selecting the correct CNC machining center requires four logical steps:
- Define your typical part family (box-type, disc-type, large-format, complex contours)
- Match core configurations to your material and accuracy (spindle torque/speed, guideway type, positioning accuracy)
- Evaluate CNC system compatibility with your existing software stack
- Demand on-site test cutting – do not rely solely on spec sheets
Part 1: Start with Manufacturing Requirements, Not Machine Parameters
Core Principle: Selection is about matching, not pursuing the highest specifications.

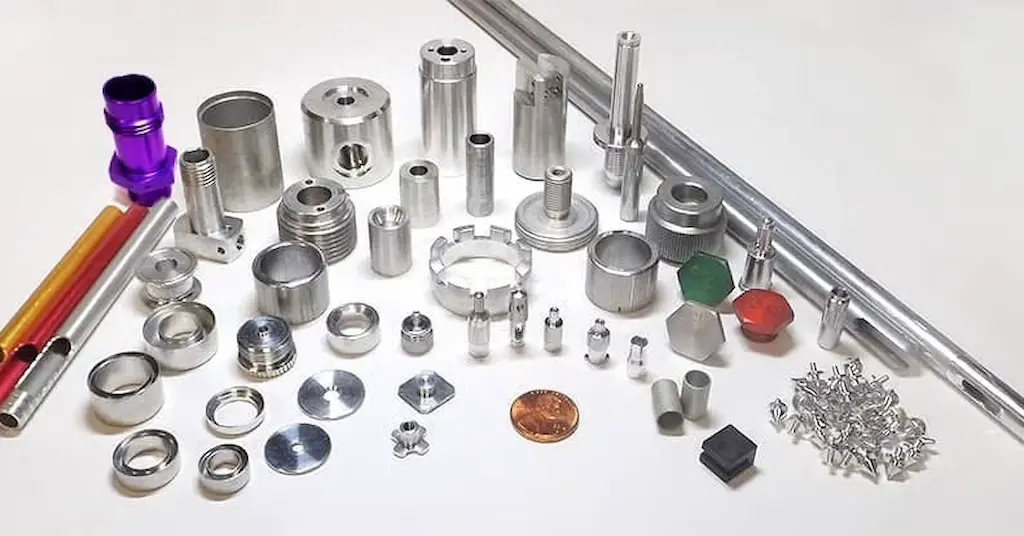

1.1 Identify Your “Typical Part Family”
Based on years of servicing manufacturing enterprises, classify 80%+ of the parts you will machine in the next 2-3 years as your “typical part family” – this is the most reliable baseline for equipment selection.
| Part Type | Typical Examples | Recommended Machine Type |
|---|---|---|
| Box-type | Engine blocks, valve bodies, pump housings | Horizontal Machining Center (HMC) |
| Disc/sleeve/plate | Flanges, cover plates, templates, wheel hubs | Vertical Machining Center (VMC) |
| Large/heavy-duty | Machine tool beds, wind power components | Gantry Machining Center |
| Complex contours/impellers | Turbine blades, medical implants, molds | 4-axis or 5-axis Machining Center |
1.2 Analyze Three Key Part Characteristics
Characteristic 1: Dimensions & Weight
- The worktable effective area should be 10%-20% larger than the maximum part in both length and width
- Spindle travel must cover all machining areas with a safety margin
Characteristic 2: Material Hardness
- Aluminum alloys (hardness <150 HB) → Choose high-speed spindle (12,000+ RPM)
- Titanium alloys, hardened steel (hardness >45 HRC) → Must choose low-speed, high-torque spindle (torque >200 Nm)
Characteristic 3: Accuracy Requirements
- Positioning accuracy ≤ ±0.005 mm = Precision grade – costs 30%-50% more than standard grade (±0.01 mm)
- When key process tolerances fall below IT6 grade, a precision-grade machine is mandatory
Part 2: Deconstructing Machining Centers – Which Type Is Right for You?
2.1 VMC vs HMC vs Gantry
| Machine Type | Advantages | Limitations | Typical Application | Price Comparison (Same Spec) |
|---|---|---|---|---|
| Vertical Machining Center (VMC) | Easy fixturing, simple setup, lower investment | Not suitable for tall parts, average chip evacuation | Discs, plates, molds | Baseline |
| Horizontal Machining Center (HMC) | Excellent chip evacuation, multi-face machining in one setup | Complex construction, higher cost, difficult setup | Box-type parts, pump bodies, valve bodies | 40%-60% higher than VMC |
| Gantry Machining Center | High rigidity, large travel, heavy load capacity | Large footprint, high investment | Large structural parts, heavy molds | Custom quote required |
Selection advice:
- If typical parts require multi-face machining and monthly volume >100 units, HMC offers 30%+ higher overall efficiency than VMC
- When part height exceeds 600 mm, standard VMC cannot handle – must choose gantry or custom extended-column VMC
2.2 3-Axis, 4-Axis, or 5-Axis: How Many Axles Do You Need?
Core Principle: Enough is enough. More axes mean higher costs and operational complexity.
| Axis Count | Suitable Applications | Price Multiple (3-axis = 1.0) |
|---|---|---|
| 3-axis | Planar contours, drilling, tapping – covers 90% of conventional parts | 1.0x |
| 4-axis | Cylindrical cams, spiral grooves – multi-face machining in one setup | Approx. 1.5x – 1.8x |
| 5-axis | Impellers, turbine blades, deep-cavity complex surfaces | Approx. 2.0x – 3.0x |
Empirical data: The hourly operating cost of a 5-axis machining center is 50%-80% higher than a 3-axis. If a 3-axis can complete the job, do not move to 5-axis.
Part 3: In-Depth Evaluation of Core Configurations & Parameters
3.1 Spindle Performance: Speed vs Torque
The answer depends entirely on your material:
| Material | Spindle Preference | Reason |
|---|---|---|
| Aluminum, soft metals | High speed (12,000 – 24,000 RPM) | Improves surface finish and cutting efficiency |
| Stainless steel, titanium | Low speed, high torque (>300 Nm) | Ensures sufficient cutting force, avoids stalling |
Field advice: If you machine multiple material types, consider a dual-winding spindle or gear-driven spindle to handle both high speed and high torque. Expect a 20%-30% price premium.
3.2 Guideway Type: Box Way vs Linear Guide
| Guideway Type | Suitable Application | Characteristics |
|---|---|---|
| Box way (sliding guide) | Heavy-duty cutting, large stock removal (e.g., mold roughing) | Extremely rigid, good vibration damping, slower speed |
| Linear guide | High-speed precision machining, light alloy cutting | Low friction, high speed, excellent accuracy retention |
| Composite guideway | Both heavy and high-speed applications | Comprehensive performance, higher cost |
3.3 CNC System: Compatibility Is Critical
Comparison of mainstream systems:
| Brand | Advantage | Best For |
|---|---|---|
| FANUC | Stable, reliable, simple operation | General parts, batch production |
| Siemens | Powerful, flexible programming | Complex surfaces, mold machining |
| Mitsubishi | High cost-performance | Batch production |
| Heidenhain | High precision, 5-axis capable | High-end molds, precision machining |
Critical reminder: Ensure the CNC system is fully compatible with your existing CAD/CAM software (e.g., Mastercam, SolidCAM, Fusion 360). During selection, bring a program for a typical part and request an on-site test at the supplier’s facility.
Part 4: Three Fatal Mistakes in Machine Selection
Avoid these three mistakes to increase your selection success rate by over 50%.
Mistake 1: Blindly Chasing High RPM
- Real case: A company bought a 24,000 RPM spindle to machine stainless steel. Result: extremely fast tool wear, poor surface finish. They were forced to run at lower speeds.
- Correct approach: Determine spindle characteristics based on the material of 90% of your typical parts.
Mistake 2: Trusting Spec Sheet Accuracy While Ignoring Actual Rigidity
- Real case: A factory purchased a machine with a claimed positioning accuracy of ±0.003 mm. During machining, chatter occurred, and actual accuracy was only ±0.02 mm due to insufficient bed rigidity.
- Correct approach: Demand on-site test cutting. Bring a typical part (preferably made of difficult-to-machine material) and measure actual accuracy with a CMM.
Mistake 3: Overlooking After-Sales Service Response Time
- Real case: A brand’s machine broke down. Spare parts took 3 days, repair took 2 days – resulting in 5 days of downtime. The loss far exceeded the price difference of the machine.
- Correct approach: Require the supplier to commit to 24-hour response, provide a list of common spare parts and their lead times. Prioritize brands with local service centers in your area.
Part 5: Selection Checklist
Copy and use this checklist:
Parts & Process
- Typical part family: □ Box-type □ Disc-type □ Large-format □ Complex contour
- Max part dimensions: L____mm × W____mm × H____mm
- Max part weight: ____kg
- Primary material: □ Aluminum □ Steel □ Stainless steel □ Titanium □ Other
- Highest accuracy required: ____mm
- Batch size: □ Prototype/small □ Medium □ High-volume
Machine Configuration
- Axes required: □ 3-axis □ 4-axis □ 5-axis
- Spindle speed needed: □ 8-12k RPM □ 12-18k RPM □ 18k+ RPM
- Spindle torque needed: □ <100 Nm □ 100-300 Nm □ >300 Nm
- Guideway type: □ Box way □ Linear guide □ Composite
- Tool magazine capacity: ____ tools
- Tool change time required: ____ seconds
Software & Service
- CNC system preference: □ FANUC □ Siemens □ Mitsubishi □ Heidenhain
- Budget range: ____ USD
- After-sales requirement: □ 24-hour response □ Local spare parts stock
- Compatible with existing CAD/CAM: □ Yes □ No
- On-site test cutting arranged: □ Yes □ No
Part 6: Frequently Asked Questions (FAQ)
Q1: What is the price difference between VMC and HMC?
A: For the same specifications, an HMC typically costs 40%-60% more than a VMC. However, considering the efficiency gain from multi-face machining in one setup, the overall ROI period may be shorter.
Q2: Is higher spindle speed always better?
A: No. High speed suits aluminum; stainless steel requires low speed with high torque. Blindly chasing high RPM will reduce tool life.
Q3: How do I verify the true accuracy of a CNC machining center?
A: Do not rely on spec sheets. Bring your typical part to the supplier and demand on-site test cutting. Then measure the actual accuracy with a CMM.
Q4: How much more expensive is a 5-axis machine compared to 3-axis?
A: For the same brand and specifications, a 5-axis machine typically costs 2-3 times a 3-axis. Also account for additional training costs for programming and operation.
Q5: Should I choose FANUC or Siemens?
A: FANUC is easier to learn, stable, and suitable for batch production. Siemens is more powerful and suited for complex molds. The choice depends on your typical parts and programming habits.
Q6: What tool magazine capacity do I need?
A: Based on the number of tools required for your typical part. General parts: 24-30 tools. Complex molds: 40+ tools. Recommend adding a 20% margin.
Q7: How to choose between box way and linear guide?
A: Heavy cutting → box way. High-speed precision machining → linear guide. If you need both, consider a composite guideway machine.
Q8: What should I check when buying a used CNC machine?
A: Focus on spindle accuracy (test with a test bar), guideway wear, CNC system version (obsolescence risk), and original maintenance records. Strongly recommend hiring an independent third-party inspection.
